CENTROID MI CNC CONTROL RETROFIT OF A

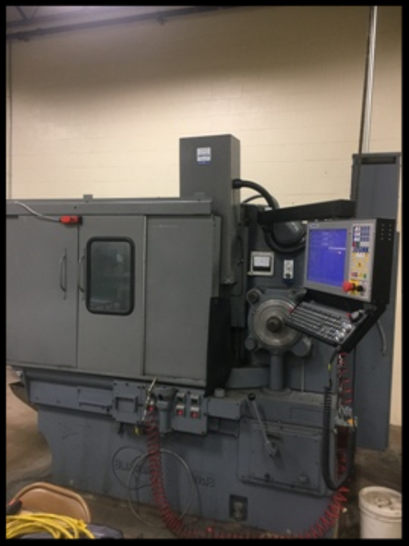

BLANCHARD #18 VERTICAL ROTARY GRINDER WITH A 2 AXIS CNC DRESSER UNIT AND CNC WHEEL AXIS W/ SCALE

GALLERY SIX- Centroid MI  CNC Control Retrofit Pictures

M400 RETROFIT, T400 RETROFIT, M39 RETROFIT, T39 RETROFIT FOUND HERE

CENTROID MI CNC CONTROL RETROFIT OF A BLANCHARD CNC GRINDER & BRIDGEPORT RETROFIT

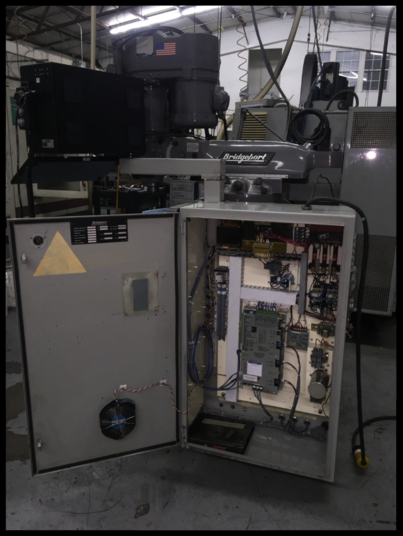

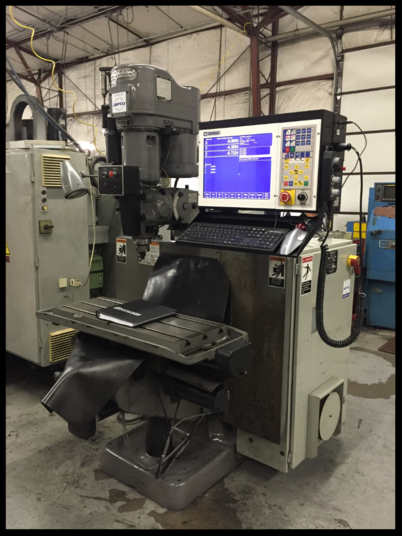

BRIDGEPORT 3 AXES MILLING MACHINE W/ POWER CHUCK AND 2 RANGE ADJUSTABLE BELT DRIVE SPINDLE

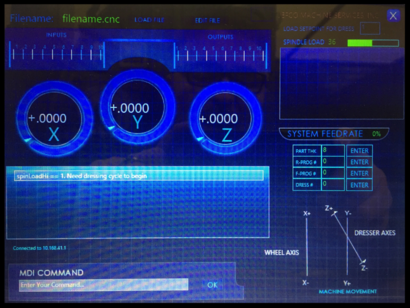

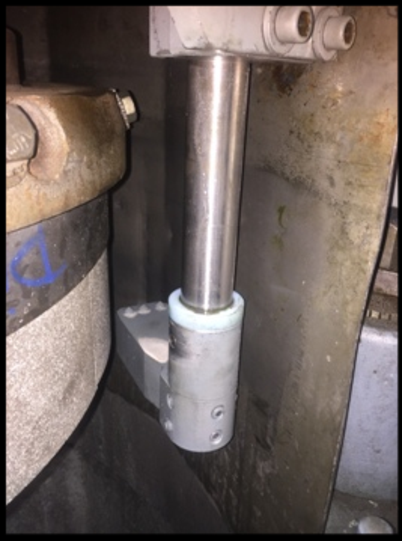

ORIGINALLY A MANUALLY OPERATED GRINDER, WE REMOVED THE DRESSER ARM AND REPLACED IT WITH A SPECIAL UNIT TO EFFECT VERTICAL AND ROTARY ACTION NEEDED TO DRESS THE WHEEL. THE DOWNFEED WAS CONVERTED TO A CNC AXIS.  A CUSTOM PROGRAMMING SCREEN WAS DESIGNED TO MAKE PROGRAMMING SIMPLE AND EASY.  ACOUSTIC SENSORS WERE ADDED TO AID IN DETERMINING DRESSING AMOUNTS AND FINAL GRIND DEPTH.  A SPECIAL ENCLOSURE WAS BUILT AROUND THE GRIND AREA.  THE BLANCHARD IS CAPABLE OF GRINDING TO SIZE BY CNC WITH NO HUMAN DRESSING MODE NEEDED.

Centroid Mi Cnc Control Retrofits for Blanchard cnc grinder and Bridgeport cnc retrofit
